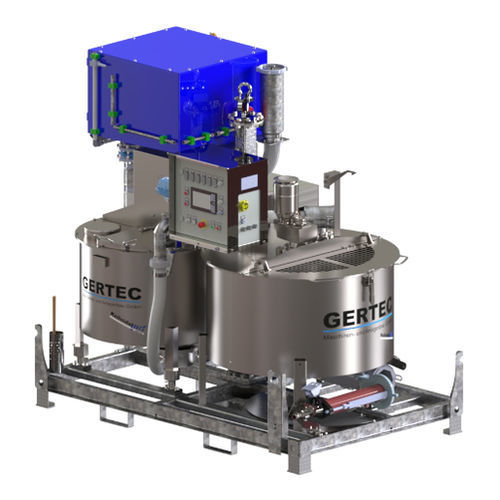

Civil engineering grout plant IS-35-EA

for geothermal applicationfor tunnel

Technical Data / Performance Data • Amount of mixing components (automatic operation) 1 x liquid 1 x solid • Effective mixer volume 280 l • Mixing water minimum 60 l • Mixer filling level (bag loading) ca. 1100 mm • Buffer tank volume 560 l • Water tank volume 280 l • Flow rate continuously adjustable 20 - 100 l/min • Solid grain size max. 2 mm • Pressure connection VT 1“; Typ 25 motar coupling VT 1“,alternatively 1“ IG • Water connection Storz C 1 ½“ standard coupling DIN14307, • Cleaning connection DN 25 Geka-claw coupling • Power connection CEE-Plug 32 A, 5-pole with phase inverter • Power input ca. 15 KW • Voltage 400 V; 50 Hz • Start/Stop signal cement screw Harting Plug 4-pole • Transport dimensions approx. 2,30 x 1,42 x 2,15 m (L x W x H) • Working dimensions approx. 2,80 x 1,42 x 2,15 m (L x W x H) • Weight approx. ca. 1210 Kg Application areas: • Anchor injection • Grouting • Cavity filling • Micro tunnelling • Ground injection • Bentonite lubrication Mixing of: • Cement slurries • Anchor grout • Bentonite slurries • Filling material for peripheral sealing • Insulation slurries • Fly ash slurries The injection station IS-35-EA-big is a compact automatic mixing and injection system specially developed for construction site operation. It is particularly suitable for mixing and pressing bentonite and cement slurries, insulating and sealing wall compounds or other solids-containing slurries. In automatic mode, the system can automatically produce slurries according to a stored recipe, pump it into the agitator tank and keep it ready for the injection pump. The processing of bagged goods is possible.
