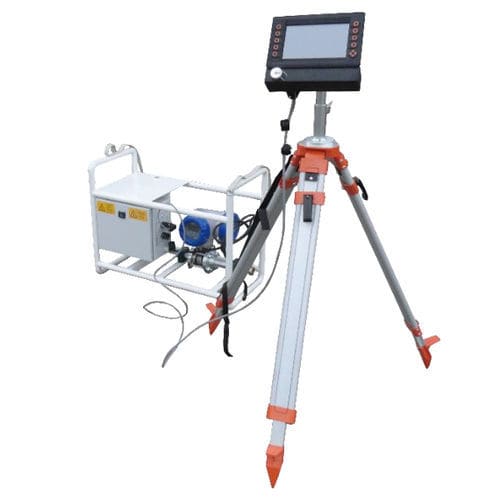

Flow data-logger GERLOGG PN100

pressuretemperatureUSB

Technical Data • Nominal diameter DN 25 mm • Pressure max. 100 bar • Recommended / flow rate max. 5 – 150/ 250 l/min • Admissible temperature range -10 bis +50 C° • Protection class IP 65 • Recorded data Flow rate Process, maximum value, average • Recorded data Quantity Process, total quantity • Recorded data Grouting pressure Process, maximum value, average • Recorded data Grouting duration Date, start time, stop time, duration, pause time • Recorded data Bore hole number • Input construction site data (comments) Name of construction site, section, site supervisor, client, device alphanumeric • Pressure connection 1“ IG DN 25 BSPP alternatively SAE-Flange 1“ IG 6000psi • USB 2.0 connector • Power connection Safety plug CEE 7/4 • Voltage 230 V; 50 Hz • Dimensions (with/without tripod) 1020 x 350 x 650 ; 810 x 350 x 550 mm ( L x W x H) • Weight (with/without tripod) approx. 50 / 46 kg Application area: • Recording, storage and analyzing grouting data during grouting and injection work.
