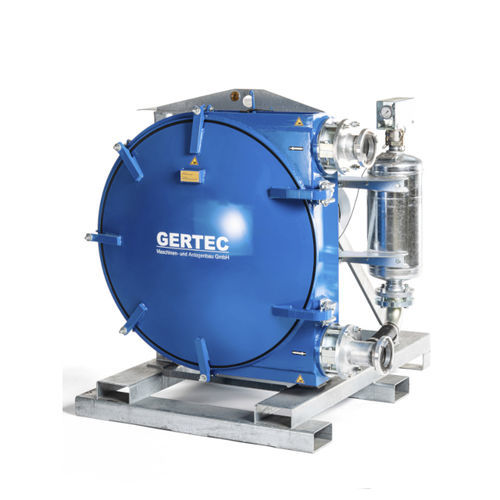

Peristaltic pump SP-1100-1-strongwaterslurrymortar
Add to favorites
Compare this product
Characteristics
- Technology
- peristaltic
- Fluid
- water, slurry, mortar
- Operation
- electric
- Priming
- self-priming
- Mobility
- stationary
- Domain
- industrial, for the construction industry
- Applications
- discharge, lifting
- Material
- steel
- Fluid specification
- for high-viscosity products
- Voltage
- 400 V
- Protection level
- high-strength, rugged
- Other characteristics
- suction, standard, flow
- Flow
70 m³/h
(2,472.02667 ft³/h)- Pressure
8 bar
(116.03 psi)- Power
31 kW
(42.15 hp)- Fluid temperature
50 °C
(122 °F)- Output diameter
100 mm
(3.937 in)- Length
157 cm
(62 in)- Width
1.69 m
(5'06" )- Height
1.63 m
(5'04" )- Weight
1,680 kg
(3,703.77 lb)
Description
Technical Data / Performance Data
• Suction lift max. 8 m
• Solids grain size max. 32 mm
• Suction connection Storz A 4“ standard coupling DIN 14307, alternatively 4“ AG, flange DN100 PN16
• Pressure connection Storz A 4“ standard coupling DIN 14307, alternatively 4“ AG, flange DN100 PN16
• Power connection CEE-plug 63 A, 5-pole
• Voltage 400 V; 50 Hz
Application areas:
• Special foundation engineering, Tunnelling (bored pile, cut-off wall, jet grouting)
• Biogas production
Pumping of:
• Bentonite slurries, drilling fluids, sealing wall slurries, groundwater, mortar, slurries, dirty water, cement, fly ash or other solid-containing slurries
• Return suspensions
• Slurries, Biomasses, Press water
Characteristics:
• dry running
• self-priming
• reversible
• low pulsation
• high productivity
• high operating reliability
• easy wear compensation of the hose pump via eccentric adjustment
• central lifting eye for crane handling
• forklift handling from long and transverse side, lift truck handling from long side
