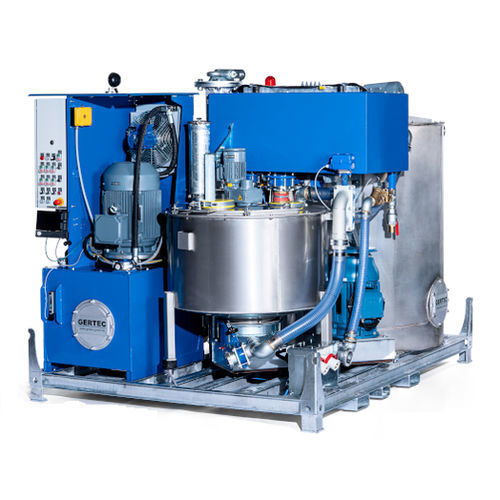

Civil engineering grout plant IS-150-EA

for tunnel

Technical Data /Performance Data • Effective mixer volume 500 l • Mixing water minimum 170 l • Water tank volume 450 l • Buffer tank volume 1500 l • Flow rate 0 – 300 l/min, electrically continuously adjustable • Grain size max. 2 mm • Pressure connection 1 1/2 “ IG • Amount mixing components 1 liquid 2 x solid • Water connection Storz B 2 ½ “standard coupling DIN14307 • Cleaning connection DN 25 Geka claw coupling • Power connection CEE-plug 2 x 63 A, 5-pole • Power input approx. 57 KW • Voltage 400 V; 50 Hz • Dimensions 2,81 x 2,25 x 2,30 m (L x B x H) • Weight approx. 3000 kg Application areas: • Anchor injection • Grouting • Cavity filling • Micro tunnelling • Ground injection • Bentonite lubrication Mixing of: • Cement slurries • Anchor grout • Bentonite slurries • Filling material for peripheral sealing • Insulation slurries • Fly-ash slurries
