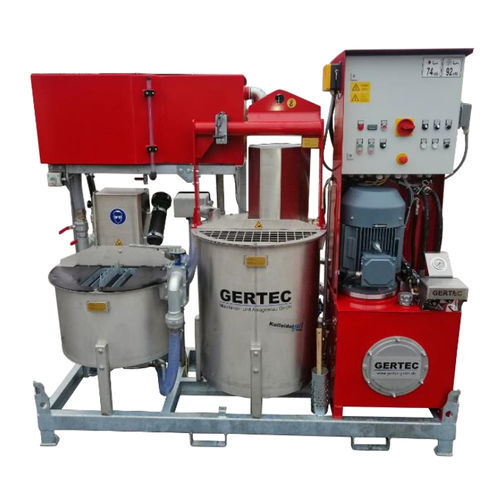

Civil engineering grout plant IS-80-E

for geothermal applicationfor tunnel

Technical Data /Performance Data • Effective mixer volume 150 l • Mixing water minimum 95 l • Mixer filling level (bag loading) 940 mm • Buffer tank volume 300 l • Water tank volume 150 • Flow rate plunger pump 0 – 95 l/min, electrically continuously adjustable • Solids grain size max. 2 mm • Pressure connection plunger pump 1“ IG • Water connection Storz C 1 ½“ standard coupling DIN14307, max.6 bar; or Geka-claw coupling • Cleaning connection DN 25 Geka-claw coupling • Power connection CEE-plug 2x 32 A, 5-pole with phase inverter • Power input 23,5 KW • Voltage 400 V; 50 Hz • Dimensions 2,26 x 0,85 x 2,1 m ( L x B x H) • Weight approx. 1200 kg Application areas: • Anchor injection • Grouting • Cavity filling • Micro tunnelling • Ground injection • Bentonite lubrication Mixing of: • Cement slurries • Anchor grout • Bentonite slurries • Filling material for peripheral sealing • Insulation slurries • Fly-ash slurries
