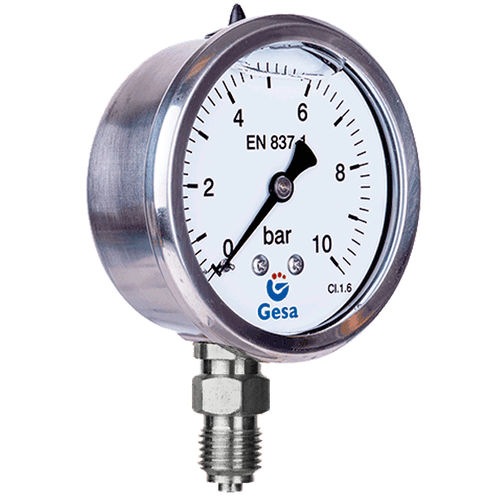

Relative pressure gauge M0305 series dialthreadedpanel-mount
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Display
- dial
- Mounting
- threaded, panel-mount, flange, built-in, back mount, wall-mounted, vertical-mount
- Process connection
- NPT 1/4, G 1/2, G 1/4, NPT 1/2, BSP 1/4, M20 x 1,5, G 3/8
- Material
- stainless steel
- Technology
- Bourdon tube
- Protection level
- IP65
- Applications
- process, for gas, for liquids, laboratory, for the food industry, for HVAC, for pharmaceutical applications, for marine applications, for refrigeration application, for hygienic applications
- Other characteristics
- glycerin-filled, OEM, compact
- Pressure
Max.: 1,000 bar
(14,503.77 psi)Min.: -1 bar
(-14.5 psi)- Precision
1.6 %
- Dial diameter
63 mm, 80 mm, 100 mm
(2.5 in, 3.1 in, 3.9 in)- Process temperature
Max.: 100 °C
(212 °F)Min.: -20 °C
(-4 °F)
Description
Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts. Specially designed for difficult conditions of use, as there are vibrations or quick changes of pressure. Also useful for adverse ambients.
Applications: Pressure gauges to measure water pressure in irrigation systems , Antivibration glycerin-filled pressure gauges for boat engines, watertight pressure gauges for boilers or air conditioning systems
Case material: Stainless steel AISI 304
Dislay: Polycarbonate
Case closing: Sealed ring
Elastic element: Bourdon tube
Antivibration fluid: Glycerine
Catalogs
M0305 series
1 Pages
