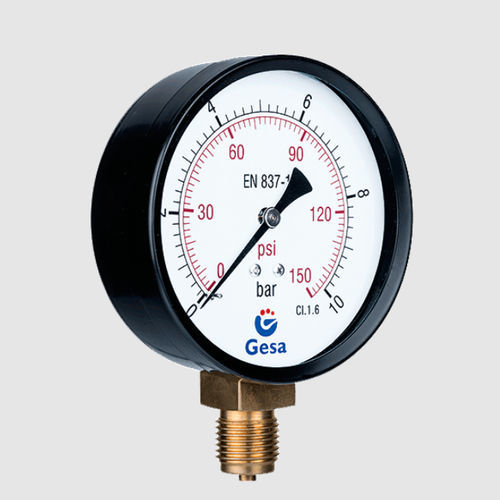

Relative pressure gauge M0201 seriesdialthreadedflange
Add to favorites
Compare this product
Characteristics
- Pressure type
- relative
- Display
- dial
- Mounting
- threaded, panel-mount, flange, built-in, back mount, wall-mounted, vertical-mount
- Process connection
- NPT 1/4, G 1/2, G 1/4, NPT 1/2, BSP 1/4, M20 x 1,5, G 3/8
- Material
- brass, steel
- Technology
- Bourdon tube
- Protection level
- IP54
- Applications
- for gas, for liquids, for hydraulic applications
- Other characteristics
- OEM, economical
- Pressure
Max.: 600 bar
(8,702.26 psi)Min.: -1 bar
(-14.5 psi)- Precision
1.6 %, 2.5 %
- Dial diameter
63 mm, 75 mm, 100 mm
(2.5 in, 3 in, 3.9 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -40 °C
(-40 °F)
Description
Suitable for all gaseous and liquid media that will not obstruct the pressure system or attack copper alloy parts. Useful for system that are not submited to strong vibrations. Specialy designed for pneumatics and hydraulics.
Case material: Steel painted black
Dislay: Glass
Case closing: Adjusted
Scale: bar/psi
Moving parts material: Copper alloy
Logo: Gesa
