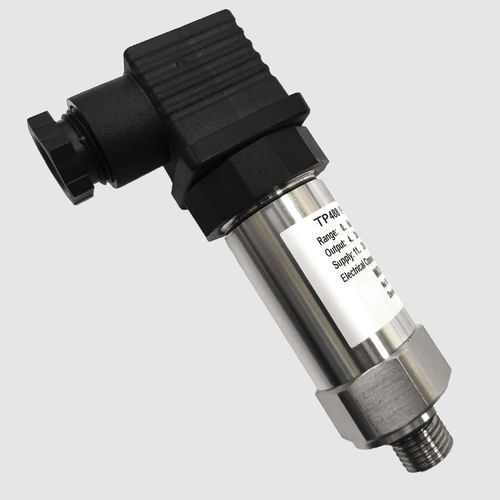

Relative pressure transmitter TP488R series
absolutepiezoresistive4-20 mA

Relative pressure transmitter - TP488R series - GESA TERMOMETROS - absolute / piezoresistive / 4-20 mA
Relative pressure transmitter - TP488R series - GESA TERMOMETROS - absolute / piezoresistive / 4-20 mA
Add to favorites
Compare this product

Go to the GESA TERMOMETROS website for more information

Characteristics

Pressure type
relative, absolute
Technology
piezoresistive
Output
4-20 mA
Electrical connection
M12 connector
Supply voltage
24 Vdc, 12 Vdc, 15VDC
Mounting
threaded, flush diaphragm
Process connection
NPT 1/4, NPT 1/2, G 1/2, G 1/4, NPT 1/8, M20 x 1,5, R 1/4, BSP 1/4
Fluid
for gas, for liquids
Material
stainless steel, plastic, PVC
Protection level
ATEX, IP65
Applications
for OEM, for the food industry, for the petrochemical industry, for water treatment, for hydraulic applications, for the chemical industry, for agricultural applications, automotive, for the plastics industry, for the aeronautical industry
Other characteristics
compact
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0 bar
(0 psi)

Precision

0.5 %

Long-term stability

0.3 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

· Stainless steel construction · Anti-frequency interference design, especially suitable for use with variable frequency inverters and pumps · Stable and highly reliable piezoresistive pressure sensor The TP488 piezoresistive transmitter has a compact design that makes it easy to install. It is made up of an OEM sensor housed in a stainless steel casing, which gives it great resistance in gaseous or liquid media. This versatile instrument is suitable for use in variable frequency water supplies, water pipe networks, industrial machinery and equipment, and automated assembly lines.
