Relative pressure transmitter TP488S101 series
absolutepiezoresistivemembrane

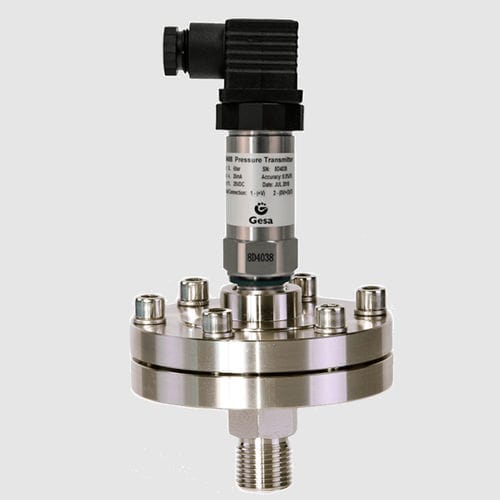

Relative pressure transmitter - TP488S101 series - GESA TERMOMETROS - absolute / piezoresistive / membrane
Relative pressure transmitter - TP488S101 series - GESA TERMOMETROS - absolute / piezoresistive / membrane
Add to favorites
Compare this product

Go to the GESA TERMOMETROS website for more information

Characteristics

Pressure type
relative, absolute
Technology
membrane, piezoresistive
Output
4-20 mA, 0-10 V
Electrical connection
M12 connector, M16 conector
Supply voltage
24 Vdc, 12 Vdc, 15VDC
Mounting
threaded, flush diaphragm
Process connection
G 1/4, G 1/2, NPT 1/4, NPT 1/2, M20 x 1,5, NPT 1/8, R 1/4, BSP 1/4, 1/2" UNF
Fluid
for gas, for liquids
Material
stainless steel, plastic, PVC
Protection level
IP65
Applications
for the petrochemical industry, for OEM
Other characteristics
OEM
Pressure range

Max.: 1,000 bar
(14,503.77 psi)

Min.: 0 bar
(0 psi)

Precision

0.5 %

Long-term stability

0.3 %

Process temperature

Max.: 80 °C
(176 °F)

Min.: -20 °C
(-4 °F)

Description

· Stainless steel construction · Economic · Short circuit protection and reverse polarity protection. · Stable and highly reliable piezoresistive pressure sensor The TP488 general pressure transducer is formed by an OEM sensor housed in a stainless steel housing, which gives it great resistance in gaseous or liquid media. Its connection with surfacing membrane with Viton washer is indicated for use in applications where hygiene such as food, pharmaceutical or chemical industry is critical.
