Condensate drain automaticbimetalliccompact
Add to favorites
Compare this product
Characteristics
- Medium
- condensate
- Operational mode
- automatic
- Other characteristics
- bimetallic, compact
- Operating temperature
400 °C
(752 °F)
Description

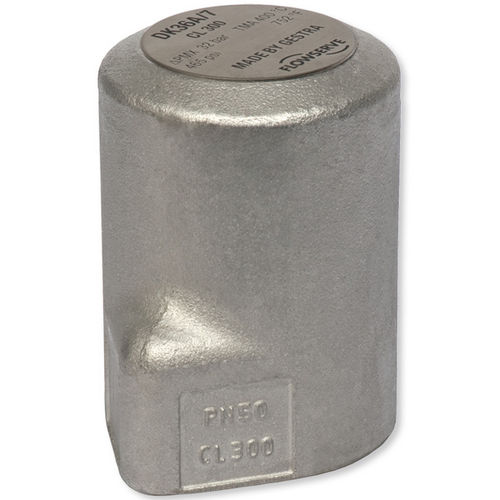

Steam traps for universal connectors
Compact, maintenance-free steam traps of stainless steel for connection to universal connectors. These steam traps can be secured with just two screws. Installation and removal is therefore extremely quick and simple.
For connection to universal connectors, we offer:
Steam traps with membrane regulator – MK 36A-71/-72
Bimetallic steam traps – BK 36A-7
Thermodynamic steam traps – DK 36A-7
Inverted bucket steam traps – IB 16A-7
The types of connector are:
Simple – UC 36
With dirt strainer (Y-strainer) – UCY 36
With integrated stop valves, test and drainage valve – TS 36
USE
Suitable for discharging small to medium volumes of condensate. Ideal for draining:
Pipes
Trace heaters
