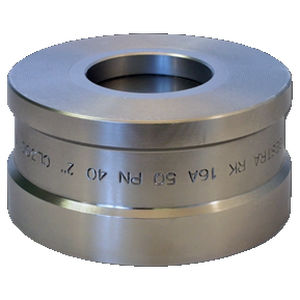

Disc check valve RK 16 series
high-pressurestainless steel

disc check valve
disc check valve
Add to favorites
Compare this product


Characteristics

Type
disc
Applications
high-pressure
Material
stainless steel
DN

Max.: 100 mm
(3.937 in)

Min.: 15 mm
(0.591 in)

Pressure

40 bar
(580.2 psi)

Temperature

-200 °C, 200 °C, 400 °C, 550 °C
(-328 °F, 392 °F, 752 °F, 1,022 °F)

Description

DISCO non-return valve RK 16 for special applications The RK 16 series is suitable for liquid, gas, steam and especially aggressive media. The temperature range extends from -200 °C to 550 °C and the pressure range covers PN 10-40, ASME Class 150/300. Different seal surface designs for tongue or male flanges to DIN or ASME RJ are possible. For installation in any position.

Catalogs

No catalogs are available for this product.

See all of GESTRA AG‘s catalogs
