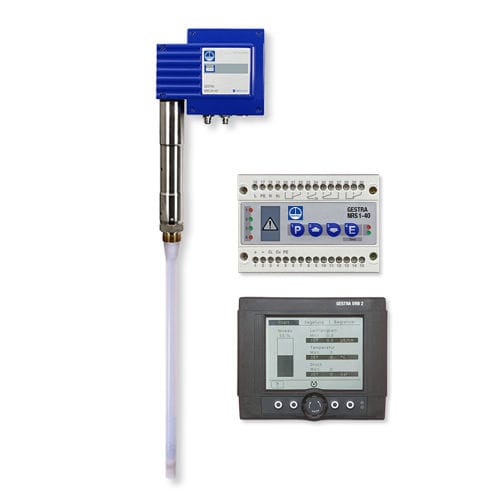

Conductive level controller NRG 26-40, NRR2-40

with LCD displayfor boiler

Continuous water level control Messgerät zur kontinuierlichen Wasserstandregelung Continuous control ensures cost-efficient operation, improved steam quality and the option of adaptation to suit even tricky controlled systems. The level measuring and control system comprises the NRG 26-40 level electrode and NRR2-40 proportional controller. The NRG 26-40 uses the principle of capacitance measurement, whereby the level is recorded continuously in a defined measuring range, in electrically conductive and non-conductive media. The water-level data are transferred via the CANopen protocol. The level controller has two limit values each with one switchpoint (MAX alarm, first MIN alarm). It can be equipped with a 4-20 mA output as an actual-value and/or modulating output. All contacts can be adjusted with a time delay from 1 to 25 sec.
