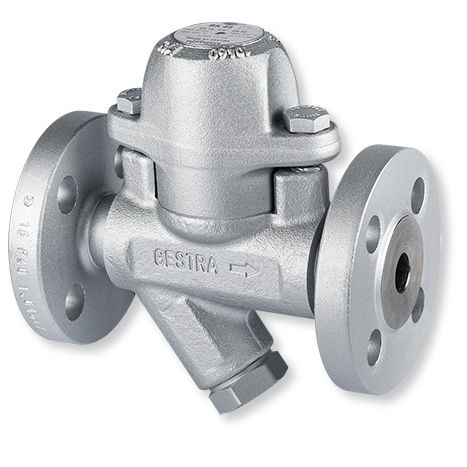

Condensate drain BK seriesautomaticthermostaticbimetallic
Add to favorites
Compare this product
Characteristics
- Medium
- condensate
- Operational mode
- automatic
- Type
- thermostatic
- Other characteristics
- bimetallic
- Operating pressure
Max.: 630 bar
(9,137.38 psi)Min.: 40 bar
(580.15 psi)- Operating temperature
Max.: 650 °C
(1,202 °F)Min.: 425 °C
(797 °F)
Description
Thermostatic steam traps for removing condensate from steam or for venting steam pipes.
In steam traps with GESTRA Thermovit regulators, the opening and closing process is controlled by the interaction of bimetallic plates and a stage nozzle. It is precisely this principle that makes steam traps from the BK series highly responsive, very efficient and extremely resistant.
USE
Robust steam traps for condensate removal from heating processes with small load fluctuations.
Especially recommended for use in:
Saturated steam pipes
Superheated steam pipes
Trace heaters
Air heaters
Thanks to automatic venting, steam traps from the BK series are also ideal for use as air vents.
