Disc check valve RK 86 seriesfor industrial applicationsspring
Add to favorites
Compare this product
Characteristics
- Type
- disc
- Applications
- for industrial applications
- Other characteristics
- spring
- DN
Min.: 15 mm
(0.591 in)Max.: 200 mm
(7.874 in)- Pressure
40 bar
(580.2 psi)- Temperature
-200 °C, -10 °C, 200 °C, 350 °C, 550 °C
(-328 °F, 14 °F, 392 °F, 662 °F, 1,022 °F)
Description

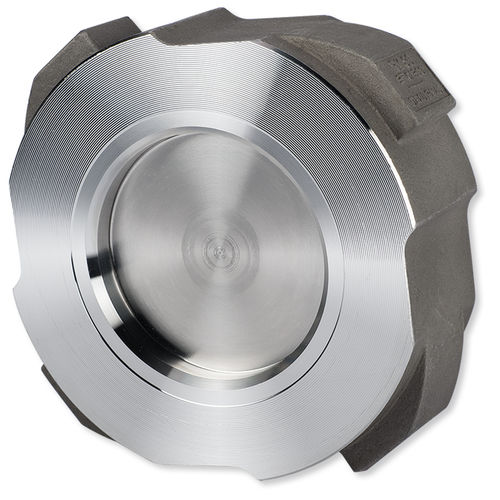

DISCO non-return valves RK 86
for industrial applications
The RK 86 series with patented self-centring body is designed for pressure range PN 6-40, ASME Class 150/300. For installation in any position.
It can be used for liquid, gas and steam as a gravity circulation check, short-circuit check, check valve, vacuum breaker, priming foot valve or pressure-maintaining valve.
