AC/AC power supply GLPS

with short-circuit protectioncompactlaboratory

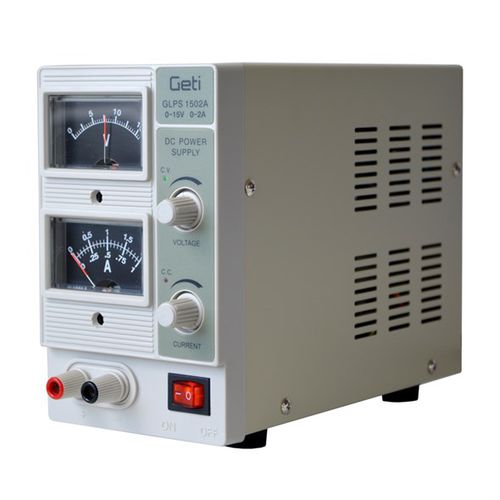

The Geti laboratory power supply for powering various electronic devices continuously regulates the output voltage and output current. It reliably maintains the set values ​​regardless of supply voltage fluctuations or the connected load. The multi-turn potentiometer allows the user to set the exact voltage. The device is equipped with short-circuit protection so that in the event of an emergency, it is safe for the user and at the same time it is not destroyed. The power supply is suitable for work in laboratories and workshops, but also as a teaching aid in schools. This source uses a classic analog current and voltage indicator, which outputs from an endless number of digital devices. Product parameters: - one output - double degree of protection, screw output terminals - continuous current regulation - analog voltage and current indicator - overload and short circuit protection - light, compact, robust construction, reinforced metal frame Technical parameters: - voltage regulation range: CV <= 1x10-⁴ + 3 mV CC <= 2x10-³ + 3 mA - range of load regulation: CV <= 1x10-⁴ + 3 mV CC <= 2x10-³ + 3 mA - voltage indication accuracy: ± 2.5% - current indication accuracy: ± 2.5% - dimensions: 95 x 150 x 225 mm - weight: 2.5 kg Technical parameters Outputs: - 1 channel
