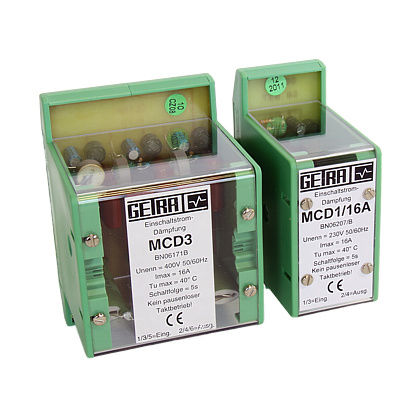

Magnetic inductor MCD 1 series

Inductors (e.g. transformers) exhibit an extremely high initial surge current (up to 100 x rated current) at switch-on depending on phase angle and magnetic forming. This causes problems with the protection of such circuits since normal fuses are triggered by these high values. A low-cost solution to this problem is provided by our series MCD damping modules. These limit the inrush current surge to a value at which selective protection is possible. For the duration of the high inrush current an ohmic resistor attenuates the current surge and is subsequently by-passed by a relay contact. Operating voltage: 230-400V, 50 Hz Other operating voltages on request Continuous load current: max. 16A Weight: MCD1 130 g, MCD2 230g, MCD3 270g •Convenient installation through snap-on fixings •Shockproof to VBG4 •Function indicator •Low-cost
