CCTV camera 752 x 582 px | GFD-631/VP-DNfor night visionfull-colorCCD
Add to favorites
Compare this product
Characteristics
- Function
- CCTV, for night vision
- Spectrum
- full-color
- Sensor
- CCD
- Other characteristics
- dome, day/night
Description

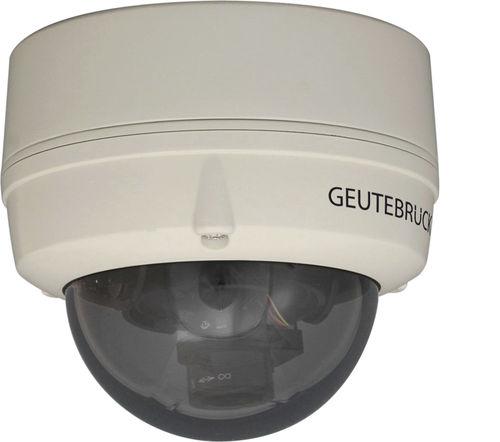

Vandalism proof very high resolution day/night fix dome in weatherproof housing with mechanical IR-cut filter operation, integrated lens and adjustable focal length. The dome is a dual mount type (surface/flush). If it is used as flush mount the surface base is spare.
Image sensor (Chip): 1/3" Super HAD CCD II
Picture format: 4:3, Video standard: CCIR/PAL
Video output: Composite video, 1 Vpp, 75 Ohm (BNC)
Scanning system: 2 : 1 interlace
Scanning frequency: 15.625 KHz (H), 50 Hz (V)
Pixel (H x V): 752 (H) x 582 (V) effective
Horizontal resolution: 600 TV-Linien (B/W 650 TVL)
Minimum sensitivity: 0.1 Lux (Col), 0.01 Lux (B/W)
Day/Night function: Removable IR cut filter
