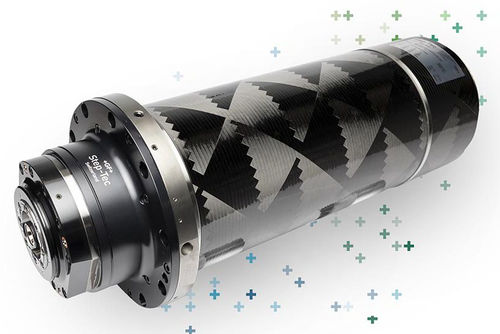

Milling motor spindle HPC 190

for grindingmotorized

The HPC 190 platform offers a broad range of metal-working solutions, not just outstanding spindles. The platform concept serves mold makers and part-production applications. Ideal for roughing and finishing precision parts, the HPC 190 spindle platform accommodates housing diameters as small as 190mm, with speeds from 6,000 to 28,000 rpm, power from 8.5 to 114 kW S1 and torque from 43 to 150 Nm S1. The Spindle Exchange Program (SEP) guarantees no more than 24 hours of downtime (EU) to maximize machine availability and minimize capital investment in spindles. Built-in acceleration sensor maintains compliance and process safety while it speeds up part approval. Monitoring options The Spindle Diagnostic Module (SDM; black box), combined with Step-Tec's patented acceleration sensor, records all process-relevant data, including vibration along three axes. SDM also monitors and time stamps collision events > 30g. Compensation Any undetected spindle movement or temperature increase can cause inaccuracies and flawed surface quality on the finished workpiece. Step-Tec provides various monitoring options for machine compensation, including several resistance thermometers, placement for traditional thermal compensation and optional Axial Movement Sensor (AMS). The combination of these data-acquisition capabilities with Step-Tec's outstanding thermal stability offers the best possible machine compensation to achieve outstanding precision and surface finishes.
