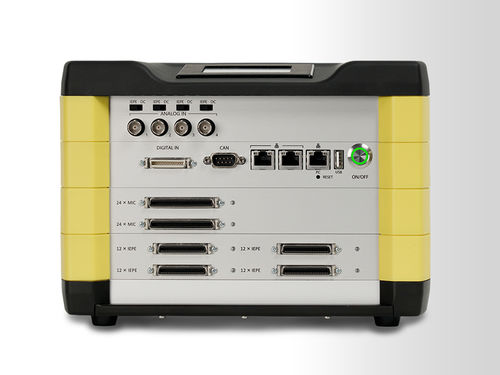

Data logger recorder gt4 series

digitalvibrationacoustic

The new modular data recorder compactly offers you a wide range of functions. Due to the small design and the use of rechargeable batteries, you can measure almost anywhere. The gt⁠⁠4 series is designed for recording with the Acoustic Camera as well as for measurements with up to 100 accelerometers. Measurements can be triggered quickly and easily via the integrated touch display, while the connected PC can be located at another place. The new gt4 offers you a wide range of options for measuring your sound and vibration signals. Connect up to 112 channels to gt4 and record signals with a sampling rate of up to 192 kHz. Thanks to the modular design, you can adapt the data recorder exactly to your requirements. The entry-level models gt4-10 and gt4-01 have 24 channels for connecting a microphone array or 24 IEPE sensors. Fully equipped, the gt4 offers you a total of 112 channels: 96 microphone or IEPE channels, 12 digital inputs and 4 optically decoupled analog inputs (voltage-supplied or current-supplied). The integrated display shows you the most important parameters of the data recorder. Run it mobile with two Bosch battery packs or use the power supply. Parallel operation of multiple arrays is implemented as well as the possibility of parallel operation of several data recorders of the gt4 series. Modular Small Light Battery operation or mains operation Integrated touch-display Designed for use with Acoustic Camera and vibration sensors
