Mechanical analysis software WaveSim

vibration analysiscomparisonstructural calculation

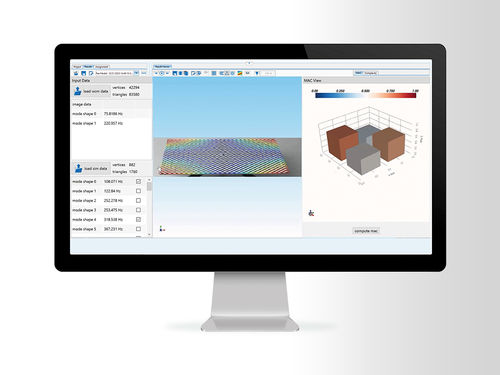

WaveSim - Precise vibration shape comparisons for your finite element analysis (FEA) and WaveCam WaveSim is an innovative software solution that verifies and validates your finite element analyses (FEA) by integrating real-time data from WaveCam, our video-based vibration analysis software. WaveSim enables you to compare simulation results with real measurement data and thus optimise the accuracy and reliability of your models. Main functions: - Import of vibration shape data: Load UFF files with waveform results from your FEA simulation and from WaveCam for a detailed comparison - Visual overlay: Overlay simulation data on WaveCam's 2D image to visually check the match between simulation and real data - Frequency focusing: Select specific frequencies from the data to perform targeted comparisons and refine your analyses. - MAC calculation: Quantify the agreement between simulation and reality with the Modal Assurance Criterion (MAC) to assess the accuracy of your models. WaveSim helps you to increase the robustness and reliability of your FEA simulations, shorten development times and optimally prepare your products for real applications. Use this innovative solution to make your designs more precise and efficient.
