Acoustic camera Paddle2x52 AC Pro

measuringhandheldportable

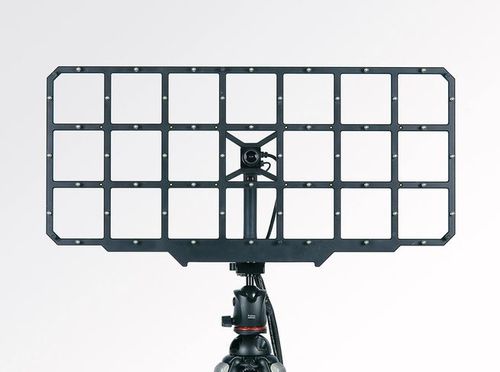

52 double-layer channel system for low frequency application This portable handheld paddle features 104 double-layered microphone channels that allow real-time acoustic near field measurements. The double-layer structure enables the measurement of acoustic pressure signals while particle velocity/acoustic intensity on the measurement plane is calculated and mapped simultaneously. This array can be operated with the mcdRec data recorder. Easy to handle: the ultimate low frequency measurement tool. The double-layered microphones act like intensity probes, delivering a vector used to calculate an acoustic map. The paddle is available as an add-on to an Acoustic Camera system or as a stand-alone solution. The calculation kernel for acoustic near field calculations is embedded in NoiseImage. The design of the paddle is lightweight and allows for easy handling. The array body is designed as slim as possible, ensuring accurate microphone positioning. The wiring of the microphones is enclosed in and protected by the array body which guarantees the best possible acoustic transparency to measure accurate sound levels. Additionally, the array design effectively minimizes partial reflections and resonance effects between the measured object and the array. Furthermore, the microphone layout facilitates a differentiation between noise sources on the measurement plane and in the field behind the paddle. The built-in studio microphones have an extremely linear frequency response. All are carefully hand selected and calibrated to ensure stable sound pressure levels (+/- 0.5 dB).
