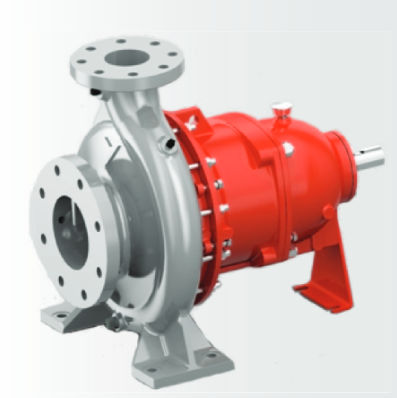

Wastewater pump AlMagnox AMXfor chemicalsfor food productsmagnetic-drive
Add to favorites
Compare this product
Characteristics
- Fluid
- for wastewater, for chemicals, for food products
- Operation
- magnetic-drive
- Technology
- centrifugal
- Mobility
- stationary
- Domain
- industrial, for the chemical industry, for wastewater treatment, for the food and beverage industry, for the pharmaceutical industry, for the petrochemical industry, for the mining industry, for the paper industry, for the semiconductor industry
- Applications
- handling, process, recycling
- Material
- stainless steel, cast iron, titanium, PFA, cast steel
- Fluid specification
- for corrosive fluids
- Other characteristics
- high-performance, ANSI
- Flow
Max.: 300 m³/h
(10,594.40002 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Pressure
16 bar
(232.06 psi)- Head
150 m
(492'01" )- Fluid temperature
Max.: 180 °C
(356 °F)Min.: -50 °C
(-58 °F)
Description
Sealless magnetic drive chemical process pump. Connecting dimensions acc to ISO 5199
Wide selection of MOC´s. Precision casted casing and impeller
Hastelloy C4 can material with minimal eddy currents, one piece deep drawn design free of welds, molded in flow braker for improved fluid circulation, bursting pressure larger than 150bar, Optional: Eddy current free can
Close coupled or frame mounted type
Design - Technical: ISO 5199. Connecting dimensions: ISO 2858 (DIN EN 22858)
Hydraulics - 22
Casing mount - Foot mounted
MOC: Casing Impeller - 316SS, Duplex. Super Duplex, Hastelloy B & C, Alloy 20
Options - Bearing oil cooling, steam jacket, closed or semi-open impeller, inducer, closed coupled type or frame mounted type
Catalogs
No catalogs are available for this product.
