Interface software 5-Axis MultiBlade

programmingsimulationcontrol

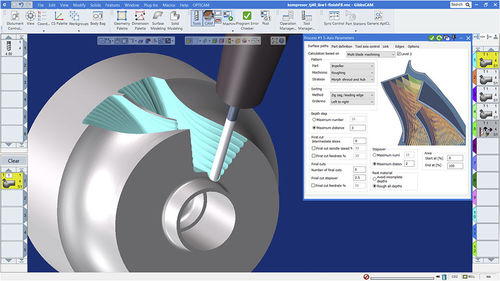

GibbsCAM 5-Axis MultiBlade module is optimized for programming machining centers and multi-tasking machines (MTMs) to make turbomachinery blade parts such as blisks, blings and impellers. The specialized and condensed interface allows easy selection of geometry without having to prepare the model. Toolpath strategies include 5-axis simultaneous roughing, hub finishing, and blade and splitter finishing, with automatic gouge checking on all toolpaths. The interface offers intelligent controls for rotating toolpaths around the part as well as fillet machining, and all toolpath strategies. Roughing between blades with single splitter support Blade, splitter and hub finishing Leading- and trailing-edge extension and all toolpath strategies including edge roll trimming Toolpath segment rotations and sorting Tool axis tilt controls Tool axis smoothing Automatic axis detection Automatic and user definable links and clearances Stock definition for rest machining 5-Axis MultiBlade can program machining of parts that have single or multiple splitters and/or sub-splitters. Blade fillet finishing Splitter smoothing Multiple splitter support
