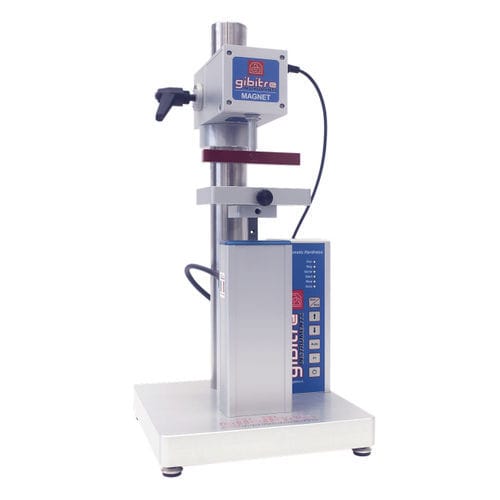

Magnetic force measuring device Magnet-Check PC

The instrument allows to measure the magnetic attraction force exerted by a magnetized specimen towards a soft iron part which is approached at a defined distance. The accuracy in the repetition of the cycle and in the measurement of the force allow to obtain repeatable and reliable results. Key Features • Motor controlled screw with recycling of ball-bearing for the displacement of the sample (max speed 85 mm/min, stroke 50 mm) • Displacement transducer with 0,0001 mm resolution • Load cell for the measure of the force (Max load 25 N, Resolution 0,0001 N) • Interchangeable indentor for the application of the force • Full license of Gibitre FORCE-DISPLACEMENTsoftware optimized for Bar-code sample identification • Full license of Datagest software for complete management of Gibitre SQL Database Intechangeable Sample Holder The plate to which the specimen is applied can be removed to ease the preparation.
