3-axis machining machine CNC-Pure**-lin
for aluminum

3-axis machining machine - CNC-Pure**-lin - Gie-Tec GmbH - for aluminum

3-axis machining machine - CNC-Pure**-lin - Gie-Tec GmbH - for aluminum - image - 2

Add to favorites

Compare this product

Go to the Gie-Tec GmbH website for more information

Characteristics

Number of axes: 3-axis
Machined material: for aluminum
X travel: 300 mm
(11.81 in)
Y travel: 400 mm
(15.75 in)
Z travel: 120 mm
(4.72 in)

Description

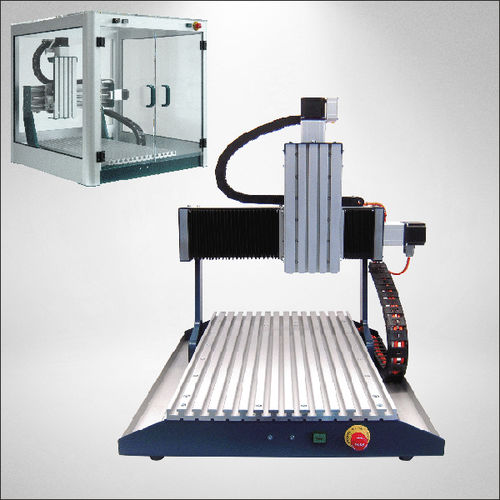

CNC-Pure Flat table CNC machine with aluminum casting portal for prototyping Working range X/Y/Z CNC-PureS - 300x400x120mm CNC-PureXL - 300x1000x120mm Mounting plate, T-groove panel, machined surface X/Y - 375x610mm Linear steel shaft guides (16mm), linear guides slides (clearance free) Ball screw spindles (16mm), ball bearing screws with plastic sealing as dirt wiper 5-axis manufactured aluminum casting (x-axis), high angular accuracy Stepper motor drives , motor cable mounted in cable chain Alternative with stepper motor drives (closed loop) or servo motor drives Dimension WxDxH - 650x675x415mm (CNC-PureS), 650x1300x415mm (CNC-PureXL) Optional with machine housing and door-lock
