Liquid ring pump vacuum unit OCS
industrial

Liquid ring pump vacuum unit - OCS  - GIEFFE SYSTEMS Srl - industrial
Liquid ring pump vacuum unit - OCS  - GIEFFE SYSTEMS Srl - industrial
Add to favorites
Compare this product


Characteristics

Configuration
liquid ring pump
Applications
industrial
Flow rate

Min.: 0 m³/h
(0 ft³/h)

Max.: 800 m³/h
(28,251.73 ft³/h)

Suction pressure

Min.: 0 bar
(0 psi)

Max.: 15 bar
(217.557 psi)

Description

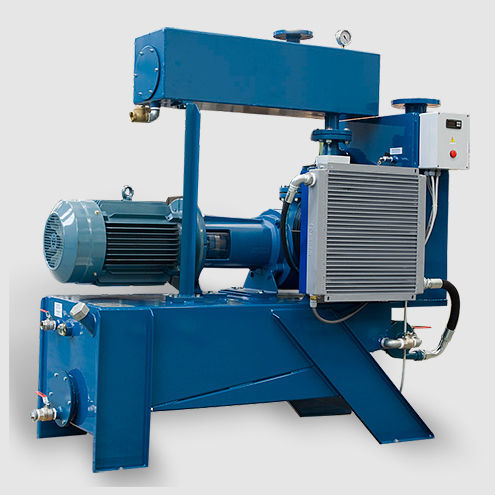

OCS Oil Sealed Vacuum Unit Oil sealed vacuum unit consisting of a liquid ring pump with closed recirculation of oil through air/oil heat exchanger, fitted with electric cabinet. High performance The physical properties of the sealing oils mean that they do not degrade even at high operating temperatures This considerablly increases the performances of a liquid ring pump compared to a pump operating with water. High and Constant Vacuum The vapor pressure which is considerably lower than that of water at 15°C and the perfect sealing of the liquid ring allow a high and constant vacuum, even at high gas temperatures. No Need of Service Water Thanks to the recirculation of oil in the pump and the use of a very low power air/oil exchanger the consumption of water can be totally eliminated. This means great savings in operating costs. No Maintenance The circulation oil continually lubricates the internal parts of the pump without leaving deposits of any kind. This protects the pump components from wear and prolongs their operating life. The service and maintenance intervals are long, keeping life cycle costs low. Removing Gas Saturated with Vapor The exclusive built-in systems for separating the extracted condensate from the service oil enables the removal of high percentage of vapor-saturated gas. The clean condensate is then discharged. Low Noise Levels Noise levels are much lower than demanded by law.
