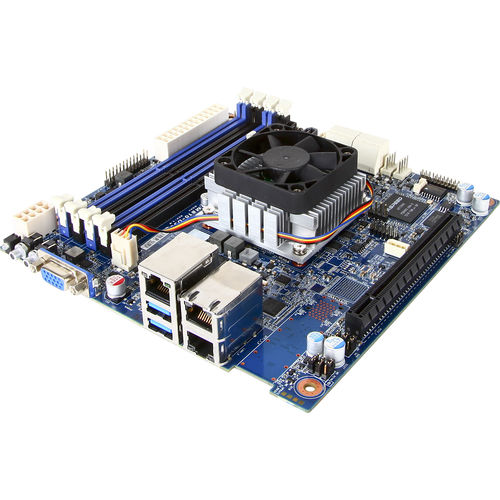

Mini-ITX motherboard MB10-DS0

Intel® XeonIntel®DDR4 SDRAM

CPU Intel® Xeon® D-1540 processor 2.0GHz Up to 2.6GHz with Intel® Turbo Boost Technology 8 cores, 16 threads 12MB cache 45W TDP Socket FCBGA 1667 Chipset - Memory 4 x DIMM slots Supports 1.2V DDR4 memory Single & dual rank modules supported RDIMM supported up to 32GB per module 1600/1866/2133 MHz LAN 1 x 10/100/1000 management LAN Video Integrated in Aspeed® AST2400 2D Video Graphic Adapter with PCIe bus interface 1920x1200@60Hz 32bpp Audio - NVMe - SAS - RAID - Expansion Slots 1 x PCIe x16 (Gen3 x16 bus) slot Internal I/O 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 6 x SATA III 6Gb/s ports 1 x CPU fan header 2 x System fan headers 1 x TPM header 1 x Front panel header 1 x HDD back plane board header 1 x JTAG BMC header 1 x Clear CMOS jumper 1 x IPMB connector 1 x PMBus connector Rear I/O 1 x ID button with LED 1 x Power button with LED 1 x Status LED TPM 1 x TPM header OS Compatibility Windows Server 2008 R2 Windows Server 2012 R2 Windows Server 2016 Red Hat Enterprise Linux 7.1 (x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 14.04.2 LTS Fedora 22 CentOS 7.1 Board Management Aspeed® AST2400 management controller Avocent® MergePoint IPMI 2.0 web interface: - Network settings - Network security settings - Users control - Services settings - IPMI settings - Sessions control - LDAP settings - Power control -Voltages, fans and temperatures monitoring - System event log - Events management (platform events, trap settings, email settings) - Serial Over LAN - vKVM & vMedia (launch, configuration) PSU Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector Operating Properties Operating temperature: 10°C to 35°C
