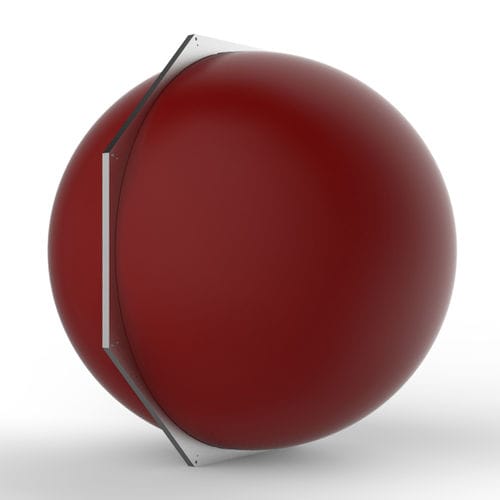

Integrating sphere UMTB-1000

Modular integrating sphere concept The modular integrating sphere concept from Gigahertz-Optik offers a high flexibility level when it comes to individual configuration of integrating spheres. In addition to the various components such as port frames, baffles and sockets that can be directly mounted onto the integrating sphere, numerous other accessories are offered for configuration of application-ready integrating spheres and integrating sphere measurement systems. Base sphere with 1000mm / 40 inch diameter The starting point of every individually configured integrating sphere is a base sphere. The UMTB-1000 base sphere has a 1000mm (40 inches) internal diameter. The anterior half of the sphere can be opened. Reflective coating made of barium sulfate The UMTB-1000 is coated with a diffusely reflective coating made of barium sulfate. Gigahertz-Optik uses its self-manufactured ODP97 color for the coating. The multilayer coating guarantees excellent diffuse reflective properties over the entire usable spectral range. Sphere ports with port frames Sphere ports are usually designed with a port frame onto which the accessories can be mounted. Port frames with free ports having diameters ranging from 12.5 to 254mm are hereby offered for the UMTB-1000. Baffles Baffles are placed between sphere openings or in front of detectors and light sources to prevent direct illumination. Different baffle designs and sizes are available.
