Calibration standard BN-1501

irradiance

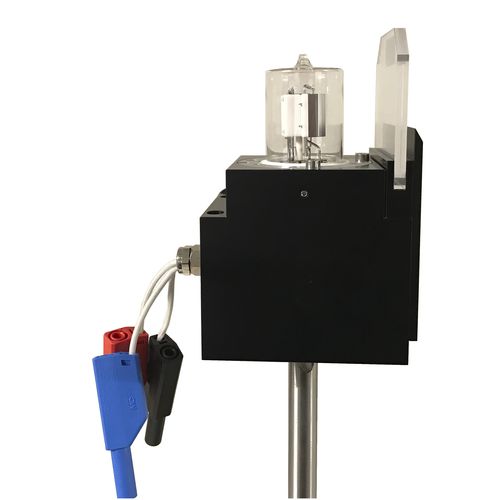

Calibration standard lamp as reference standard for spectral irradiance One of the common measures of optical radiation is irradiance. This measure is used to evaluate the intensity of radiation incident on a reference surface in W/m². To calibrate measurement devices (spectroradiometers) for spectral irradiance measurements in W/(m²nm), calibrated light sources are required. These must ideally have a continuous spectrum within the spectral responsivity range of the instrument to be calibrated and a traceable calibration to a National Metrology Institute (NMI). In addition, the lamps used must meet high requirements with regard to their short-term and long-term stability. The most commonly used halogen lamps, however, provide too little signal in the UV range. This is why deuterium light sources are often used in the UV range. Deuterium lamps provide a well usable calibration range from 200 nm to 400 nm. Reference standard BN-1501 The reference standard BN-1501 is based on a 30 W deuterium lamp. The electrical connection is made via laboratory sockets on the stand. The transparent target allows for precise and reproducible alignment/positioning of the reference standard in the measurement setup. Each lamp is subjected to a recorded burn-in process before being released. Only lamps that meet the strict burn-in criteria will be released.
