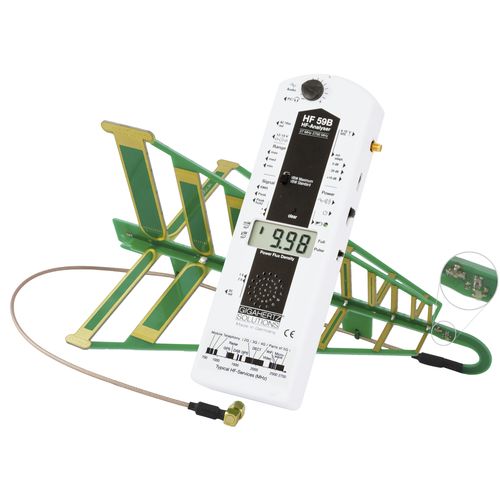

Electromagnetic field measuring instrument HF59B

digitalindustrialfor building

The extra broad frequency response predestines the basic unit for expansion with the UBB27. In combination with the inherent system advantages of broadband field strength measurement, the range of functions and equipment tailored to the building biologist's needs make meaningful sleep place investigations affordable. Mostly sold as HFE59B, it is the world's most frequently used HF broadband measuring device within the building biology professional associations. Frequency range: A frequency range of down to 27 MHz within the basic device - suitable for the connection of an optionally available antenna (the scope of delivery includes a compensated antenna for 700 MHz up to 2.7 or 3.3 GHz) Description Its focus lies on the professional HF analysis and remediation methods: • Self-compensating, optimized log.-per. antenna from 700 MHz to 3.3 GHz with higher accuracy, especially at the critical lower and upper end of the frequency range. Allows a perfect display of the 700 MHz 5G band, which is particularly important for this range, as well as of all other cell phone services such as GSM (2G), UMTS/CDMA (3G), LTE (4G), 5G (wide area bands), wireless phones, smart meters, the lower wireless LAN / Wi-Fi band, Bluetooth. (The frequency range of the base units starts already at 27 MHz - therefore it is suitable for the connection of the UBB antenna). • High sensitivity: display resolution 0.01 µW/m². An important factor especially for EHS patients (electrohypersensitives). The external preamplifier HV10 allows a further increase of the sensitivity!
