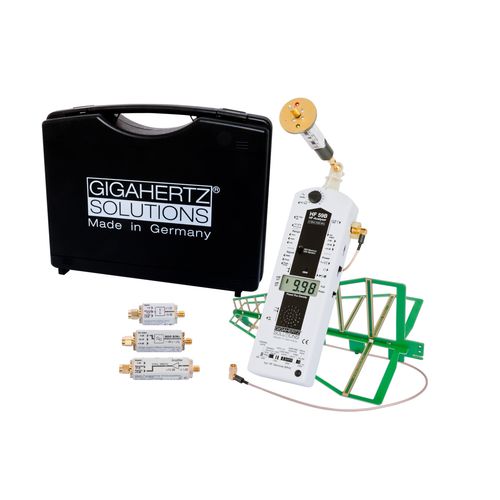

Electromagnetic field measuring instrument HFE59B

digitalindustrialfor building

The practical range of functions and equipment, together with the inherent advantages of broadband field strength measurement, offers outstanding analysis possibilities for high frequency and makes professional sleep place examinations affordable. The world's most frequently used HF broadband measuring device in building biology professional associations. Frequency range: 27 MHz to more than 3.3 GHz Description Established worldwide as THE benchmark for broadband RF measurement technology for committed building biologists: • The extra broad frequency range amongst others comprises cell phone services such as GSM (2G), UMTS/CDMA (3G), LTE (4G), 5G (wide area bands), wireless phones, smart meters, the lower wireless LAN / Wi-Fi band, Bluetooth, TETRA/BOS, TV, broadcast radio, and of course also the “old” but important CB-radio and microwave ovens. The lower airport radio frequencies are also comprised. • The HFE59B comes with two antennas… The horizontally-isotropic ultra broad bandwidth antenna UBB27_G3 from 27 MHz up to beyond 2.7 GHz (so called "Omni" characteristic). With the help of its tiny resonator, it can also detect very tight but especially high local peaks, which cannot be covered by the log.-per. antennas but are of great importance for the building biology. • The especially compensated log.-per. antenna for the range above 700 MHz for a reliable localization of the sources of radiation. The upper frequency limit of both antennas is 3.3 GHz.
