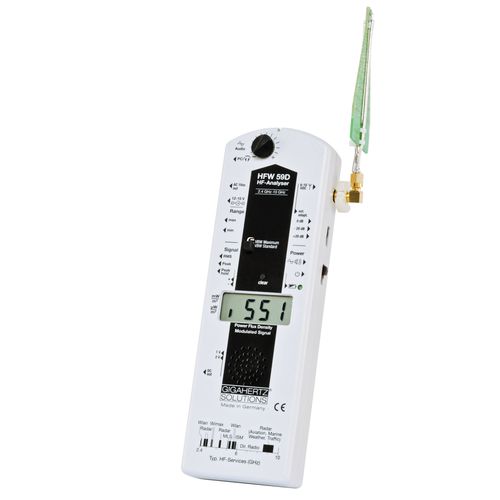

Electromagnetic field measuring instrument HFW59D

digitalfor controlportable

Complements the basic building biology equipment for the upper frequency range up to 10 GHz: Especially for the analysis of the two WLAN/WiFi bands, the last auctioned 5G band and of course radar between 8.5 and 9.5 GHz. This device, too, has its origins in building biology practice and since its market launch a few years ago has found rapid worldwide distribution in building biology professional associations. Frequency range: 2.4 - 10.0 GHz Description Reliable addition to the HF59B for the upper frequency range: • FULL 10 GHz, fully compensated. This unique broadband HF meter allows unfalsified measurements of the frequently used radar frequencies between 8.5 and 9.5 GHz (air traffic control, navigation radar, military radar, weather radar, traffic control). Maximum VBW to display shortest radar pulses (< 0.5 µs). • Integrated steep high pass filter at 2.4 GHz reliably suppresses the often dominant GSM and DECT frequencies, thus allowing unfalsified measurements of WLAN/WiFi and the upper area relevant 5G frequency range at 3.4 to 3.8 GHz. • Includes an especially designed log-per antenna with excellent directional characteristics. • Optimized Peak Hold function with particularly fast response speed due to patented circuitry. • 1 µW/m² display resolution (for higher sensitivity, e.g. for minimal wireless LAN signals, use the optional preamplifier HV20_2400G10). • Calibrated AC measurement output for the demodulated signal, scalable DC output, for instance for the connection to an NFA for long-term recordings. • Quantitative differentiation of pulsed unpulsed radiation according to the building biology recommendations.
