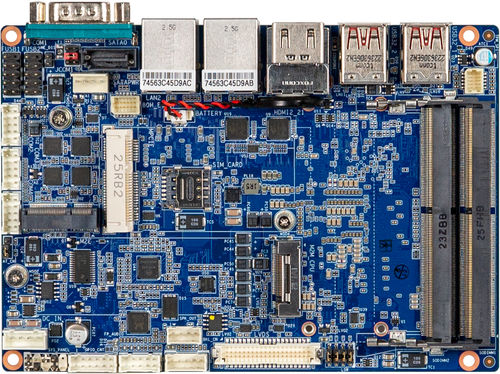

3.5" SubCompact SBC QBiP-1255A

ATX12th Generation Intel® Core™Intel® Core i7-1255U

3.5” SubCompact Board with 12th Generation Intel® Core™ i7-1255U Processor, Dual Channel DDR4 memory, 4 x COM, 1 x SATA 6Gb/s, 4 x USB 3.2 Gen 2x1, 4 x USB 2.0 Specification 146W x 101.7D(mm) 10nm Enhanced Superfin (Intel 7), 10 cores, 12 threads, up to 4.7 GHz TDP 15W Socket - 1 x FCBGA1744 Support Dual Channel DDR4 3200 MHz memory modules Ethernet - 2 x 2.5GbE LAN Ports (Intel® I226V) Video - Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (3 independent display outputs) Audio - Realtek® Audio Codec Storage - 1 x SATA 6Gb/s Port (SATA RAID 0/1) Expansion Slots - 1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot Internal I/O - 1 x 4-pin box power connector (DC in +9V~36VDC) 1 x SATA Power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x USB 2.0 headers 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header TPM - 1 x TPM header (SPI) Operating Properties - Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) Packing Content - Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.5kg Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) Order Information - 9MADU7ASMR-SI (Box Packing) Optional Kit - Fansink P/N: 25ST4-113104-A7R Fanless sink P/N: 25ST1-113110-A7R
