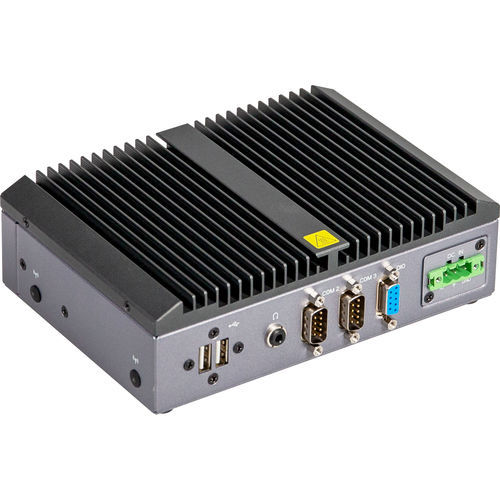

Embedded PC QBiX-Pro-ADLA1235H-A1
wall-mountedVESA mountingbox

embedded PC
embedded PC
embedded PC
Add to favorites
Compare this product


Characteristics

Configuration
embedded, wall-mounted, VESA mounting, box
Processor
Intel® Core i5-1235U
Ports
Mini PCIe, DDR4 SO-DIMM, HDMI, RS-232, USB 3.2, RJ45, RS-485, Ethernet, 2.5 GbE, RS-422, M.2, SATA
Domain
for industrial applications, automation, for IoT applications, for the healthcare sector
Other characteristics
fanless, SSD

Description

Industrial system with Intel® Core™ i5-1235U Processor/ Fanless Design / Dual Channel DDR4 up to 64GB/ 2 x HDMI Specification Dimension - 178W x 125D x 52.7H(mm) 10nm Enhanced Superfin (Intel 7), 10 cores, 12 threads, up to 4.4 GHz Chipset - SoC Ethernet - 2 x 2.5GbE LAN Ports (Intel® I226V) Graphic Support - Integrated Graphics Processor - Intel® Iris® Xe Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) Audio - Realtek® ALC269 Expansion Slots - 1 x 2280 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot Front I/O - 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 2 x HDMI 1 x Power button with LED 1 x HDD LED 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x External Antenna Hole (Optional) Rear I/O - 2 x USB 2.0 2 x COM Ports (RS-232/422/485) 1 x GPIO (8 bits) 1 x Headphone Jack 1 x 3-pin Terminal block Side I/O - 2 x External Antenna Holes (Optional) Power - +12V~36VDC (Full Range) Operation Temperature - Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage Vibration During Operation - Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis Shock During Operation - Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD Packaging Content - Carton size: 505 x 333 x 231 (mm) Packing Capacity: 5pcs Single Box size: 313 x 191 x 95 (mm)
