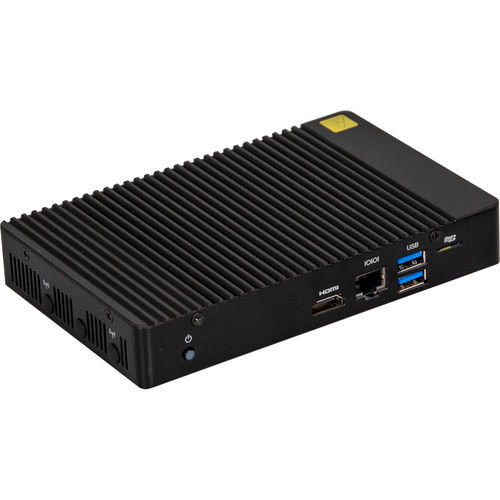

Box PC QBiX-Plus-EHLA6412-A1

embeddedIntel® Celeron® J6412HDMI

Industrial system with Intel® Celeron® J6412 Processor Specification Dimension - 165W x 105D x 27H (mm) 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W Support Dual Channel DDR4 3200 MHz memory modules Ethernet - 2 x GbE LAN Ports Graphic Support - Integrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors: 3 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz (3 independent display outputs) Audio - Realtek® audio codec Storage - — Expansion Slots - 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key Front I/O - 2 x USB 3.2 Gen 1 1 x COM Port (RS-232)(RJ45 Type) 1 x Micro SD card slot 1 x Power button 1 x HDMI Rear I/O - 1 x Headphone Jack 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 2 x HDMI 1 x DC Jack Side I/O - 3 x External Antenna Holes (Optional) Power - +12~19VDC (Adapter 19V/65W) Operation Temperature - Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Vibration During Operation - Operation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2280 Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
