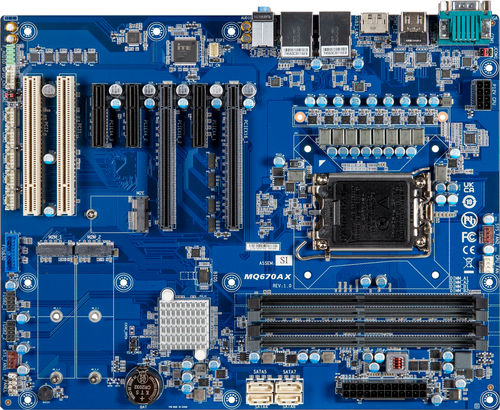

ATX motherboard ATX-Q670A

Intel® Celeron®Intel® PentiumIntel® Core i5

ATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, 6 x COM, 10 x USB, 4 x SATA 6Gb/s, up to 5 x PCIe expansion slots, and 2 x PCI expansion slots Specification Form Factor - ATX 305W x 244D (mm) CPU - Support for 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1700 package TDP under 125W Socket - 1 x LGA 1700 Chipset - Intel® Q670 Chipset Memory - 4 x DDR4 DIMM sockets, Max. Capacity 128 GB Support Dual channel DDR4 3200 MHz memory modules Ethernet - 2 x 2.5GbE LAN Ports (Intel® I226V & I226LM) Video - Integrated Graphics Processor – depends on CPU: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x D-sub port, supporting a maximum resolution of 1920x1080 @60Hz (4 independent display outputs) Audio - Realtek® ALC897 Storage - 4 x SATA 6Gb/s Ports RAID - RAID 0/1/5/10 Expansion Slots - 1 x PCIe x16 (Gen 4x16)(PCIEX16_1) * The PCIEX16_1 slot shares bandwidth with the PCIEX16_2 slot. * The PCIEX16_1 slot operates at up to x8 mode when a device is installed in the PCIEX16_2 slot. 1 x PCIe x16 (Gen 4x8)(PCIEX16_2) 3 x PCIe x4 (Gen 3x4) 2 x PCI 1 x 2280/2242 M.2 M-Key (PCIe Gen3x4, SATA 6Gb/s)(M2M_1) 1 x 2280/2242 M.2 M-Key (PCIe Gen3x4)(M2M_2) 1 x 2230 M.2 E-Key Internal I/O - 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x System fan headers 1 x Front panel header 1 x Front panel audio header 4 x USB 2.0 headers 2 x USB 3.2 Gen 1 headers 1 x COM header (RS-232/422/485 & RI/5V/12V)
