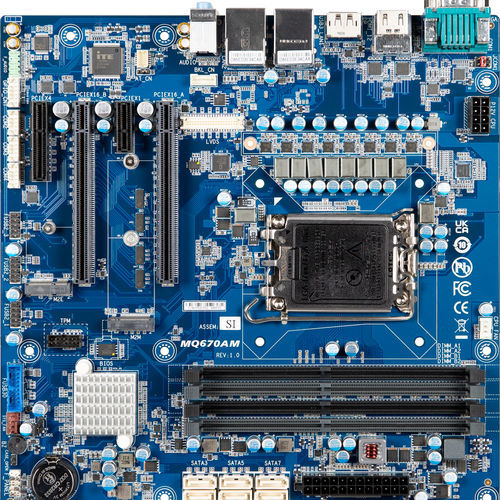

Micro-ATX motherboard uATX-Q670A

Intel® Celeron®Intel® PentiumIntel® Core i5

Micro-ATX with Intel® Q670 Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 4 x COM, 12 x USB, 6 x SATA 6Gb/s Specification 244W x 244D(mm) TDP under 125W Socket - 1 x LGA 1700 Chipset - Intel® Q670 Chipset Memory - 4 x DDR4 DIMM sockets, Max. Capacity 128 GB Support Dual channel DDR4 3200 MHz memory modules Ethernet - 1 x GbE LAN Port (Intel® I219LM) 1 x 2.5GbE LAN Port (Intel® I226V) Video - Integrated Graphics Processor - depends on CPU: 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (4 independent display outputs) Audio - Realtek® ALC897 RAID - RAID 0/1/5/10 Expansion Slots - 1 x PCIe x16 (Gen 4x16)(PCIEX16_A) * The PCIEX16_A slot shares bandwidth with the PCIEX16_B slot. * The PCIEX16_A slot operates at up to x8 mode when a device is installed in the PCIEX16_B slot. 1 x PCIe x16 (Gen 4x8)(PCIEX16_B) 1 x PCIe x1 (Gen 3x1) 1 x PCIe x4 (Gen 3x4) 1 x 2280/2242 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key Internal I/O - 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x Case open header 1 x GPIO (8 bits) & SMBus header 1 x Backlight Control header 1 x Clear CMOS jumper 1 x Buzzer 1 x AT/ATX mode select jumper Rear I/O - 3 x Audio Jacks (Line in, Line out, Mic in) 2 x HDMI 1 x Display Port 1 x VGA 1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 2 x USB 3.2 Gen 1 TPM - 1 x TPM header (SPI)
