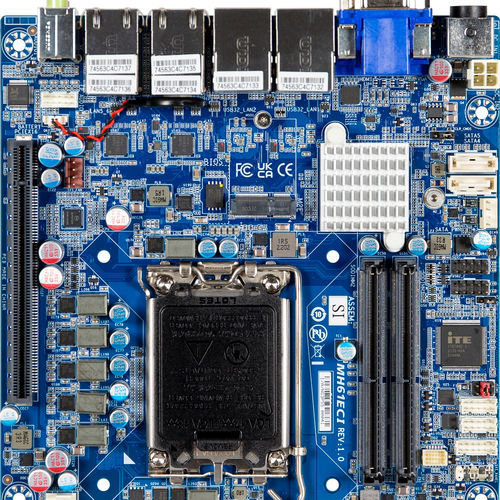

Mini-ITX motherboard mITX-H61EC

Intel® Core i5Intel® Core i3Intel® Core i7

Mini-ITX with Intel® H610E Chipset, support 14th/13th/12th Generation Intel® Core™ Processors, Dual channel DDR4 memory, PCIe, 2 x COM, 8 x USB, 2 x SATA 6Gb/s Specification Form Factor Mini-ITX 170W x 170D(mm) CPU - Support for 14th/13th/12th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package TDP under 65W Socket - 1 x LGA 1700 Chipset - Intel® H610E Chipset Memory - 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual channel DDR4 3200 MHz memory modules Ethernet - 6 x 2.5GbE LAN Ports (Intel® I226V) Video - Integrated Graphics Processor - depends on CPU: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (2 independent display outputs) Audio - Realtek® ALC897 Storage - 2 x SATA 6Gb/s Ports Expansion Slots - 1 x PCIe x16 (Gen 4x16) 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) Internal I/O - 1 x 4-pin ATX main power connector 1 x SATA power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 4 x USB 2.0 headers 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x COM header (RS-232) 1 x GPIO (8-bits) & SMBus header 1 x Clear CMOS jumper 1 x Buzzer header 1 x AT/ATX mode select jumper Rear I/O - 2 x Audio Jacks (Line out, Mic in) 1 x HDMI 1 x VGA 6 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 1 x DC Jack (+12V/+19V~24VDC) TPM - Onboard TPM 2.0 security chip Infineon SLB9670VQ2.0 OS Compatibility - Windows 10/11 (x64) Operating Properties - Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing)
