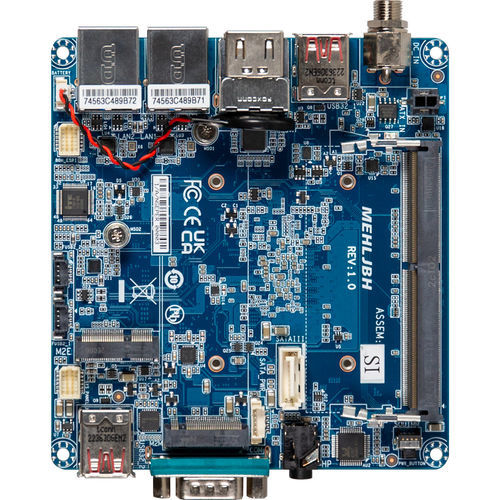

AT motherboard QBi-6412B

Intel® Celeron® J6412INFINEONIntel®

Embedded Compact Board with Intel® Celeron® J6412 Processor, Single Channel DDR4 memory, 1 x COM , 1 x SATA 6Gb/s, 6 x USB, TPM on baord Specification Form Factor - Embedded Compact Board 105W x 110D (mm) CPU - Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W Socket - 1 x FCBGA1493 Memory - 1 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Single Channel DDR4 3200 MHz memory modules Ethernet - 2 x GbE LAN Ports (Realtek® RTL8111H) Video - Integrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors : 2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz (2 independent display outputs) Audio - Realtek® ALC897 Storage - 1 x SATA 6Gb/s Port Expansion Slots - 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key Internal I/O - 1 x 2-pin power connector 1 x SATA power header 1 x CPU fan header 1 x Front panel header 2 x USB 2.0 headers Front I/O - 2 x USB 3.2 Gen 2x1 1 x COM Port (RS-232) 1 x Combo Audio Jack (Headphone & Headset) 1 x Power button Rear I/O - 2 x RJ45 LAN Ports 2 x HDMI 2 x USB 3.2 Gen 2x1 1 x Screw type DC Jack (+12V~19VDC) TPM - Onboard TPM 2.0 security chip Infineon SLB9670VQ2.0 OS Compatibility - Windows 10 (x64) Operating Properties - Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing)
