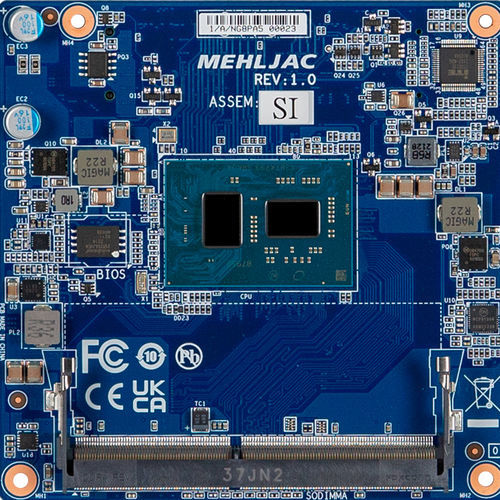

COM Express computer-on-module CE6-6412A

Intel® Celeron® J6412quad-coreHDMI

COM Express Type 6 Compact Size with Intel® J6412 Processor Specification Form Factor - COM Express® R3.0 Compact Module, Type 6 95W x 95D (mm) CPU - Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W Socket - 1 x FCBGA 1493 Memory - 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual Channel DDR4 3200 MHz memory modules BIOS - AMI UEFI 256Mb Super I/O - ITE IT8613E/NX Video - Integrated Graphics Processor - Intel® UHD Graphics for 10th Gen Intel® Processors: - LCD : eDP 4096 x 2304 @ 60Hz - 2 x DDI ports support configurable HDMI/DisplayPort HDMI 2.0b: 4096 x 2160 @ 60Hz DisplayPort 1.4: 4096 x 2160 @ 60Hz (3 independent display outputs) Audio - Intel® HD Audio Storage - 2 x SATA 6Gb/s Ports Expansion Slots - 6 x PCI Express x1 (Gen3) Internal I/O - 2 x USB 3.2 (Gen2)(10Gb/s) 2 x USB 3.2 (Gen2)(10Gb/s) - Optional ports by PCIe Co-lay 8 x USB 2.0 Ports (480Mbps) 1 x eSPI 1 x SMBUS 1 x I2C 1 x GPIO (8 bits) 1 x System fan Watchdog - 65536 level, 0 ~ 65535 sec Power Requirement - Vin: 8.5V ~ 20V VSB: 4.75V ~ 5.25V RTC Battery: 2.0V ~ 3.3V OS Compatibility - Windows 10 (x64) Operating Properties - Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Packing Content - Carton size: 384 x 251 x 211 (mm) Packing Capacity: 20pcs Single Box size : 168 x 112 x 34 (mm) Order Information - 9MEHLJACMR-SI (Box Packing)
