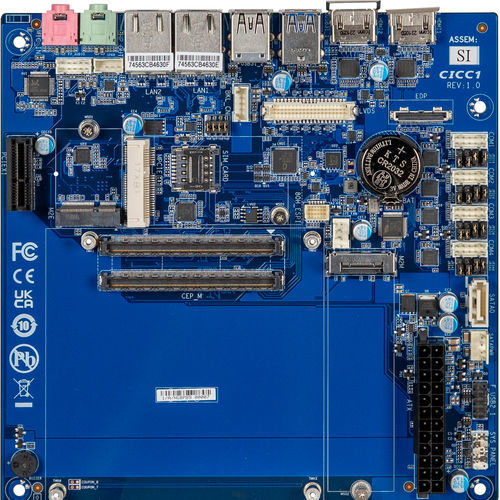

Evaluation board E6-EVBA

COM Express Type 6 Evaluation board Specification Form Factor - Mini-ITX 170W x 170D (mm) Compatible models - PICMG COM Express® R3.0 Type 6 pinout compatible Support module as follows: CE6-6412A Ethernet - 2 x GbE LAN Ports (Realtek® RTL8111H) Graphics - Integrated Graphics Processor: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz 1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz * eDP connector is alternative with LVDS port, only one can be worked at the same time (3 independent display outputs) Audio - Realtek® ALC897 Storage - 1 x SATA 6Gb/s Port Expansion Slots - 1 x PCIe x1 (Gen 3x1) 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (PCIe x1, USB 2.0) 1 x Full-size Mini PCIe with SIM slot Internal I/O - 1 x 24 pin ATX main power connector 1 x SATA Power connector 1 x System fan header 1 x Front panel header 1 x Front panel audio header 4 x COM headers (RS-232/422/485 & RI/5V/12V) 1 x Backlight Control header 1 x Speaker out header 2 x USB 2.0 headers 1 x Buzzer Rear I/O - 2 x Audio Jacks (Line out, Mic in) 2 x HDMI 2 x RJ45 LAN Ports 3 x USB 3.2 Gen 1 1 x USB 2.0 OS Compatibility - Windows 10 (x64) Operating Properties - Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Packing Content - Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Including: IO Shield x 1 (P/N: 12AIO-CICC10-00R) SATA Cable x 1 (P/N: 12CF1-2SAT1B-01R) Order Information - 9CICC1MR-SI (Box packing)
