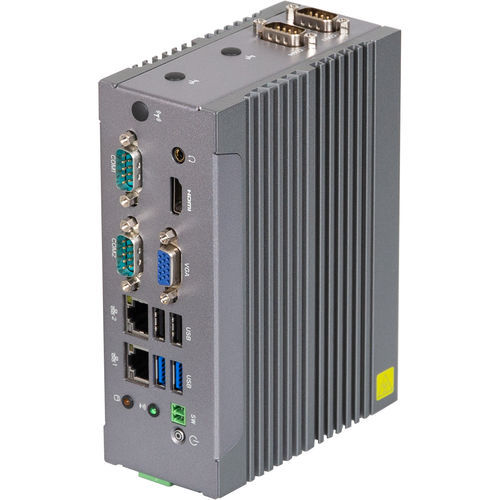

Box PC QBiX-DR-EHLA6412H-A1

embeddedDIN railIntel® Celeron® J6412

DIN Rail industrial system with Intel® Celeron® J6412 Processor Specification Dimension - 160W x 118D x 62.6H (mm) CPU - Intel® Celeron® J6412 Processor 10nm, 4 cores, 4 threads, up to 2.60 GHz TDP 10W Memory - 1 x DDR4 SO-DIMM socket, Max. Capacity 32 GB Support Single Channel DDR4 3200 MHz memory modules Ethernet - 2 x GbE LAN Ports (Intel® I210AT) Graphic Support - Integrated Graphics Processor- Intel® UHD Graphics for 10th Gen Intel® Processors: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz (2 independent display outputs) Audio - Realtek® Audio codec Storage - 1 x 2.5” HDD/SSD (SATA 6Gb/s) Expansion Slots - 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x 3052/3042 M.2 B key with SIM Slot –4G/5G Support 1 x Vertical USB 2.0 Front I/O - 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x HDMI 1 x VGA 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 1 x Power button with LED 1 x WiFi/HDD LED 1 x Remote control connector 1 x Headphone Jack 1 x External Antenna Hole (Optional)
