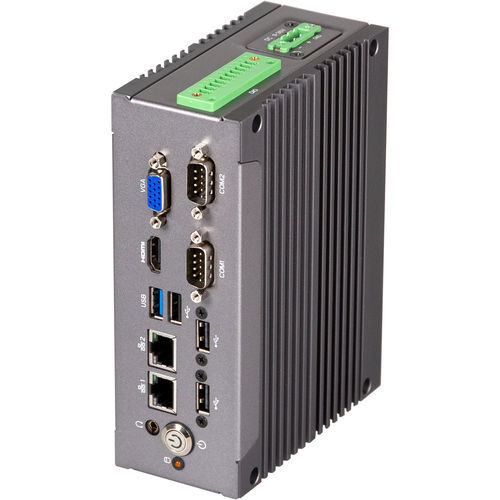

Box PC QBiX-Pro-BYTA1900HD-A1

embeddedDIN railIntel® Celeron J1900

DIN Rail industrial system with Intel® Celeron® J1900 Processor Specification Dimension - 160W x 118D x 62.6H (mm) CPU - Intel® Celeron® J1900 Processor 22nm, 4 cores, 4 threads, up to 2.42 GHz TDP 10W Memory - 1 x DDR3L SO-DIMM socket, Max. Capacity 8 GB Support Single Channel DDR3L 1333 MHz memory modules Ethernet - 2 x GbE LAN Ports (Intel® I211AT) Graphic Support - Integrated Grapics Processor -Intel® HD Graphics: 1 x HDMI 1.4 port, supporting a maximum resolution of 1920x1200 @60Hz 1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (2 independent display outputs) Audio - Realtek® Audio codec Storage - 1 x 2.5” HDD/SSD (SATA 3Gb/s) Expansion Slots - 1 x 2280 M.2 M-Key (SATA 3Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0)--support 3G/4G module Front I/O - 2 x RJ45 LAN Ports 1 x USB 3.2 Gen 1 3 x USB 2.0 1 x HDMI 1 x VGA 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x COM Port (RS-232/422/485) 1 x Power button with LED 1 x HDD LED 1 x Headphone Jack Rear I/O - 1 x Din Rail Mounting Support Side I/O - 1 x GPIO (8 bits) 1 x 3-pin Terminal Block 3 x External Antenna Holes (Optional)
