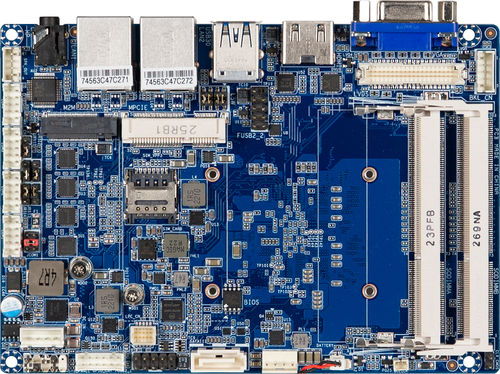

3.5" SubCompact motherboard QBiP-E3940BT

Intel® Atom® x5-E3940quad-coreIntel®

3.5” SubCompact Wide Temperature Embedded Motherboard with Intel® Atom® x5-E3940 Processor, Dual Channel DDR3L memory, 4 x COM , 1 x SATA 6Gb/s, 6 x USB, Temp -40°C to 85°C Specification Form Factor - 3.5" SBC 146W x 101.7Dmm CPU - Intel® Atom® x5-E3940 Processor 14nm, 4 cores, 4 threads, up to 1.8 GHz TDP 9.5W 2M Cache Socket - 1 x FCBGA1296 Memory - 2 x DDR3L SO-DIMM sockets, Max. Capacity 8GB Support Dual channel DDR3L 1866 MHz memory modules Ethernet - 2 x GbE LAN Ports (Realtek® RTL8111H) Video - Integrated Graphics Processor - Intel® HD Graphics 500: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (with compatible displays) 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (3 independent display outputs) Audio - Realtek® ALC897 Storage - 1 x SATA 6Gb/s Port Expansion Slots - 1 x 2242 M.2 M-Key (SATA 6Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module Internal I/O - 1 x 4-pin box power connector (+9V~36VDC) 1 x SATA Power header 1 x System fan header 1 x Front panel header 1 x 2W Speaker out header 4 x USB 2.0 headers 3 x COM headers (RS-232) 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header 1 x Buzzer header ＊Conditional DC-input 9V support with : (1) SATA_PWR support 5V only (2) LVDS backlight cannot support (3) Total power consumption under 50W Rear I/O - 1 x Headphone jack 1 x HDMI 1 x VGA 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 TPM - 1 x TPM header
