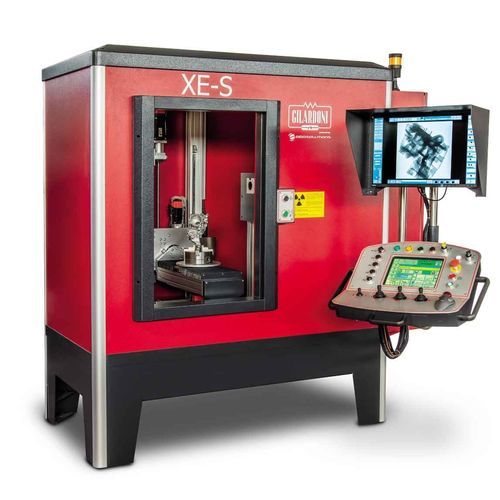

X-ray computed tomography machine XE-S

high-resolution

The XE-S cabinet is the smallest of the series: versatile and modular it allows to install, at a later time, different components and additional functions compared to the initial configuration, adapting to the new needs of your business. In its basic configuration it’s equipped with minifocus X-ray source 160kV “AION” produced by Gilardoni, but it can be equipped with other minifocus sources up to 225 kV or microfocus source for high resolution analysis on small components or with details of a few microns. The use of a digital panel for image acquisition, together with cutting edge processing software and proprietary filters, allow to obtain HIGH-QUALITY IMAGES The solid 5-axis manipulation system uses brushless motors with multiturn absolute encoders that permit the usage without any reset operation after switching on or restoring the system. The robust 5-axis manipulation system, with absolute multi-turn encoders, allows use of the equipment without resetting after shutdown or system recovery. STRENGTHS ■ Modularity ■ High image quality ■ Small footprint and light weight ■ Easy loading ■ Cutting edge software ■ Low maintenance ■ Operator safety ■ Interconnection with company information system ■ Ergonomic work position ■ Standard lead shielding for applications up to 225kV FEATURES PENETRATION up to 160mm Al (or 30mm Fe) INSPECTABLE VOLUME up to Ø 420mm x H 600mm LOADABLE WEIGHT 20kg EQUIPPED WITH • Minifocus source 160kV or 225kV • Microfocus source • 8’’ Flat panel APPLICATIONS For use in various fields: ■ Automotive ■ Aerospace ■ Foundry ■ Piping ■ Welding ■ Rubber ■ Plastic ■ Electronics ■ Research ■ Reverse engeneering
