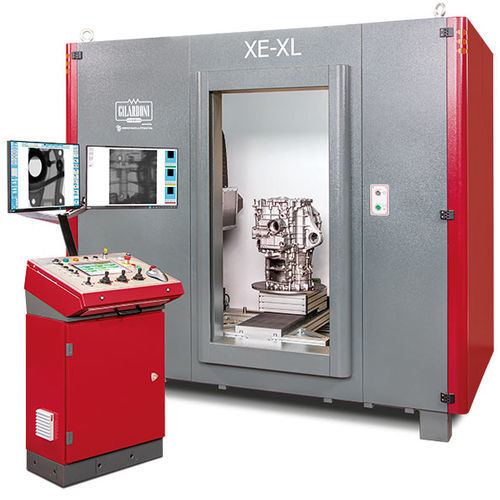

X-ray computed tomography machine XE-XL

high-resolution

XE-XL is Gilardoni’s roomiest system while maintaining the characteristics of versatility and modularity that distinguish all our x-ray systems. The large inspection area and a lead shield for protection up to 225 kV makes it suitable for inspections of a wide range of objects of large dimensions. In its basic configuration it is equipped with an X-rays MINIFOCUS source 160kV or 225 kV, but can be equipped at the same time with an X-rays MICROFOCUS source for high resolution analysis on small components or with details of a few microns. The use of a digital panel for image acquisition, together with cutting edge processing software and proprietary filters, allow to obtain high-quality images. The robust 7-axis manipulation system, with absolute multi-turn encoders, allows use of the equipment without resetting after shutdown or system recovery. The additional function X-WIDE VIEW allows to enlarge the field of view up to 16’’ even with 8’’ sensors. This model is particularly suitable for possible customizations that allow to increase the inspection area in order to satisfy the most varied needs. STRENGHTS ■ Flexibility ■ Modularity ■ High image quality ■ Advanced manipulator ■ Easy loading ■ Easily programmable control software with touch screen ■ Standard image processing software on dedicated monitor ■ Low maintenance ■ Operator safety ■ Large inspection area ■ Interconnection with company information systems ■ Standard lead shielding for use up to 225 kV
