X-ray generator AION

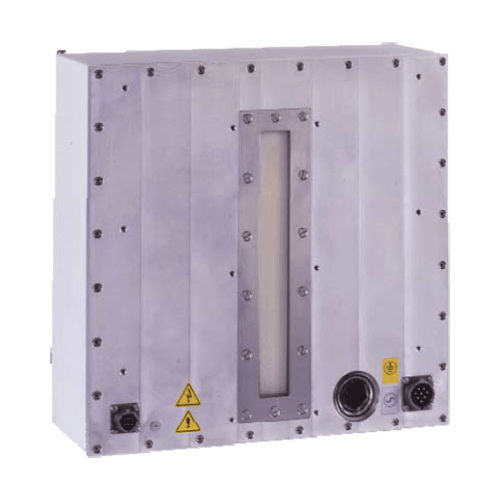

Aion 160kV monoblock is compact and versatile, thanks to the many combinations and configurations available. The system is composed of a control unit and a monoblock. The monoblock includes the high voltage, avoiding the need of bulky and expensive high voltage cables inside the machine. The essential and compact design of the product makes it easier to integrate. Air cooled or water cooled, with cone or fan x-ray beam, it is in particular the versatility of Aion 160kV that makes it usable in various applications. Such as research of foreign objects in food inspection, but also quantitative verification, level and weight inspection, in industrial applications for tomography and quality inspections, sorting, recycling, and further more. ■ Power: 500W continuous (water) 500W peak, 200W continuous @ 30°C (air) ■ Tube current: 1 mA÷7 mA Aion 100W monoblock was born from a request of customization, proofing how an open discussion with customers is essential to define new project lines and how Gilardoni is able to develop solid projects. The system is composed of a control unit and a monoblock. The monoblock includes the high voltage, avoiding the need of bulky and expensive high voltage cables inside the machine. Aion 100W monoblock strengths are the small focal spot and the advanced passive convection cooling that doesn’t require any other cooling system. In fact, it is suitable for the use in security inspections, luggage scanner, body scanner and aviation industry in general. • Power: 100W peak – 50W continuous @ 40°C • Tube current: 0,5 – 1 mA
