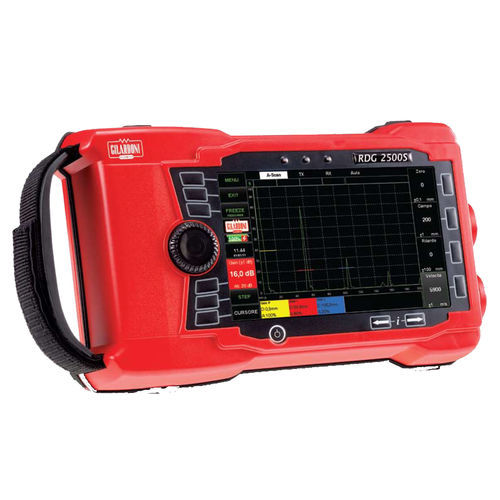

Ultrasonic flaw detector RDG series
for NDTfor pipelinesfor metal structures

ultrasonic flaw detector
ultrasonic flaw detector
ultrasonic flaw detector
ultrasonic flaw detector
ultrasonic flaw detector
Add to favorites
Compare this product


Characteristics

Technology
ultrasonic
Applications
for NDT, for pipelines, for metal structures, for railroads
Portability
portable, hand-held
Options and accessories
digital, exterior

Description

The new RDG 2000-2500-2500S digital flaw detectors feature a high brightness screen and an operator interface via dedicated keyboard and video displays set around the special A-SCAN panel. With different measurement methods available, special functions, an internal data logger, and complete output ability, the RDG 2000-2500-2500S detectors are the most versatile of the new generation. With IP 67 protection against water and oil for keyboard and screen, the units can safely be used in workshops and construction sites. RDG 2000, 2500 and 2500S can be operated with DAC or TGC and AVG/DGS curves. The DAC curves, which can be drawn on 10 points, can be selected on 4 levels (0, -6, -12dB and one custom) with the ability to read the echo height of the curve displayed. The AVG/DGS curves for straight probes (e.g. DP25/2, DP25/4 and DP10/4) allow for evaluation of flaw equivalent diameter even when attenuation or transfer losses occur. The LCD transflective colour TFT 7” display with different colour combinations displays data cleary even in unfavourable light conditions. The instrument’s versatility, low weight, compact size (1.6 Kg with battery), and long battery life (> 14h) make the new RDG flaw detector easy to use and carry and an extremely useful tool for ultrasonic general inspections. A convenient “Flip monitor” function automatically rotates the screen depending on the operator’s grip position (right or left hand).
