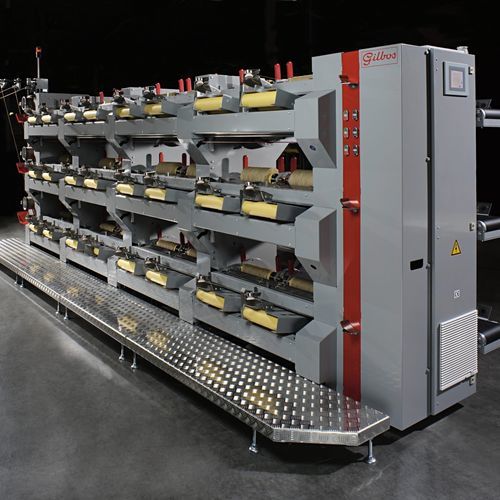

Yarn winder SmarTakeUp

yarn winder
yarn winder
yarn winder
yarn winder
yarn winder
Add to favorites
Compare this product


Characteristics

Product application
yarn

Description

Winder for take-up of up to 96 ends after Power-Heat-Set. Individually driven spindles per deck with a very efficient doffing systeem. Winding speed is adjusted according to the heat setting speed. Electronically adjustable crossing angle and yarn feeding. Conveyor belt per deck for evacuation of full packages. Standard equipped with P-winding. (optional with P & Q-winding) Very short doffing cycle of 15 seconds. Machine can be extended up to 96 spindles. Winder for take-up of up to 96 ends after Power-Heat-Set. Speed up to 750 m/min. Quick & efficient doffing system. Low maintenance cost. Robust design with few moving parts and integrated maintenance interface allow for optimal uptime of the machine at a minimum cost. Modular machine build up, in sections of 6 spindles, up to 96 ends.
