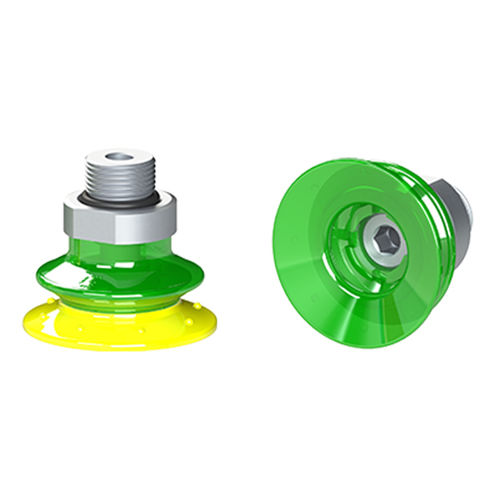

Bellows vacuum suction cup VG.BP series
liftingpolyurethane-coated

Bellows vacuum suction cup - VG.BP series - GIMATIC - lifting / polyurethane-coated
Bellows vacuum suction cup - VG.BP series - GIMATIC - lifting / polyurethane-coated
Bellows vacuum suction cup - VG.BP series - GIMATIC - lifting / polyurethane-coated - image - 2
Bellows vacuum suction cup - VG.BP series - GIMATIC - lifting / polyurethane-coated - image - 3
Bellows vacuum suction cup - VG.BP series - GIMATIC - lifting / polyurethane-coated - image - 4
Bellows vacuum suction cup - VG.BP series - GIMATIC - lifting / polyurethane-coated - image - 5
Bellows vacuum suction cup - VG.BP series - GIMATIC - lifting / polyurethane-coated - image - 6
Bellows vacuum suction cup - VG.BP series - GIMATIC - lifting / polyurethane-coated - image - 7
Add to favorites
Compare this product


Characteristics

Type
bellows
Applications
lifting
Other characteristics
polyurethane-coated
Diameter

Min.: 10 mm
(0.39 in)

Max.: 75 mm
(2.95 in)

Weight of the suction cup

Min.: 0.5 g
(0.02 oz)

Max.: 45.6 g
(1.61 oz)

Description

• Suitable for minimal level compensations, with high stability • Excellent gripping performance on corrugated or porous surfaces, or non-sealed surfaces, such as cardboard, plastic items and composite materials with uneven surface • Also suitable for applications with lifting forces parallel to the surface • Features an exceptional elastic memory • Available with 50 Shore hardness, green colour • Available with 30/70 Shore hardness. The two-colour suction cup is robust and flexible at the same time
